Products
  • Price:￥0

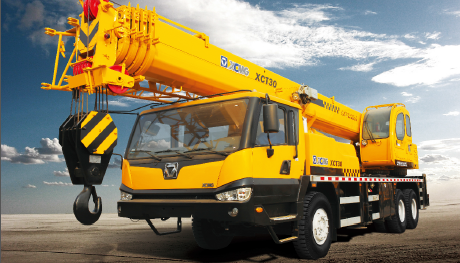

  • Name:XCT30E
  • Number:111116531210
  • Category:LIFTING MACHINERY
  • Date Added:2013/11/11 16:53:12
  • Views:2246
Products
Dimensions
Unit

Overall length
Mm
12740
Overall width
Mm
2500
Overall height
Mm
3480
Weight


Dead weight in travel state
Kg
33490
Front axle load
Kg
7900
Rear axle load
Kg
25590
Power


Engine model

SC8DK280Q3 SC9DF300Q3 WD615.329
Engine rated output
Kw(r/min)
206/2200 221/2200 213/2200
Engine rated torque
N.m(r/min)
1112/1400 1250/1400 1160/1100-1600
Travel


Max.travel speed
Km/h
80
Min. turning diameter
M
22
Min. ground clearance
Mm
290
Approach angle
。
20
Departure angle
。
16
Max. gradeability
%
≥40
Fuel consumption of per 100km
L
≈37
Lifting performance


Max. total rated lifting load
T
30
Min. rated working radius
M
3
Turning radius at swing table tail
Mm
3270
Base boom max. load moment
Kn.m
1128
Base boom
M
10.6
Full-extend boom
M
41
Full-extend boom+Jib
m
49.3
Outrigger longitudinal distance span
M
5.65
Outrigger lateral distance span
M
6.0/4.8
Working speed


Boom elevating time
S
68
Boom telescoping time
S
165
Max. slewing speed
r/min
2.5
Main winch max. speed(single line)
m/min
120
Auxiliary winch max.speed(single line)
m/min
120
