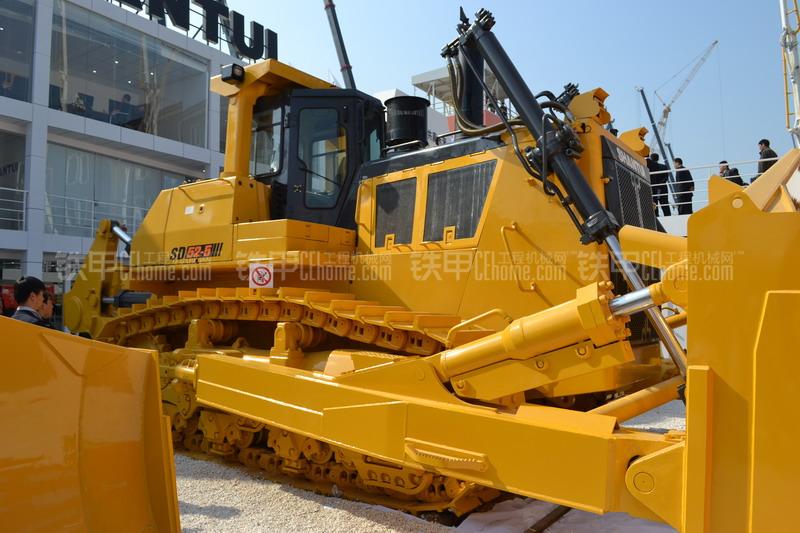

- Name:SHANTUI DOZER SD50-5
- Number:122315483415
- Category:EARTH MOVING MACHINERY
- Date Added:2014/12/23 15:48:34
- Views:3505
Products
● The bulldozer has a module design for
easy and convenient disassembly and repair;
● Adopting Europe III emission standards,
the bulldozer is equipped with an air to air inter-cooling electrical control
engine, featuring strong power and low oil consumption;
● Equipped with a hydrostatic torque
converter with locking function, the bulldozer features excellent driving
efficiency, which is beneficial in various working conditions;
● The brake system uses a normally closed
type, braking after the engine stops for high safety;
● The working device uses pilot controls
for excellent sensitivity and performance, making it easy to operate;
● The bulldozer is equipped with a low
noise cab with ROPS/FOPS, which meets international safety standard, has excellent
sealing performance, and indoor noise reaching international advanced levels;
● Large structural key parts are
reinforced in design, improving reliability;
● Suspension travel system allows the bulldozer
to function on various complicated road conditions, using effective vibration
damping to improve overall comfort and reliability of the chassis;
● Equipped with large, colorful display
screen; bulldozer can monitor itself.
|
ITEM |
UNIT |
SD52-5 |
|
L×W×H(Ripper not included) |
mm |
10420×4680×4470 (Ripper included) |
|
Operating weight(Ripper not included) |
t |
67.5(Ripper included) |
|
Engine |
- |
Cummins QSK19 |
|
Engine Emission standard |
- |
Euro III |
|
Rated power |
kW/rpm |
392/1800 |
|
Gradeability |
° |
30 |
|
Blade type |
- |
Semi-U blade |
|
Blade width |
mm |
4695×2265 |
|
Dozing capacity |
m3 |
18.5 |
|
Ma× drop below ground of blade |
mm |
720 |
|
Lift height of blade |
mm |
1660 |
|
Ripper type |
- |
Single ripper |
|
Ripping depthof ripper |
mm |
1435 |
|
Lifting height of ripper |
mm |
1105 |
|
Number of carriers (each side) |
- |
2 |
|
Number of track rollers (each side) |
- |
7 |
|
Number of track shoes (each side) |
- |
40 |
|
Width of track shoe |
mm |
610 |
|
Track gauge |
mm |
2500 |
|
Ground length and ground pressure |
mm/MPa |
3940-0.138 |
|
Pitch |
mm |
280 |
|
Forward speed |
km/h |
0–3.8 |
|
0–6.8 |
||
|
0–11.8 |
||
|
Reverse speed |
km/h |
0–5.1 |
|
0–9.2 |
||
|
0–15.8 |
