- Name:SHANTUI DOZER SD42-3
- Number:122315533612
- Category:EARTH MOVING MACHINERY
- Date Added:2014/12/23 15:53:36
- Views:3131
Products
Features:

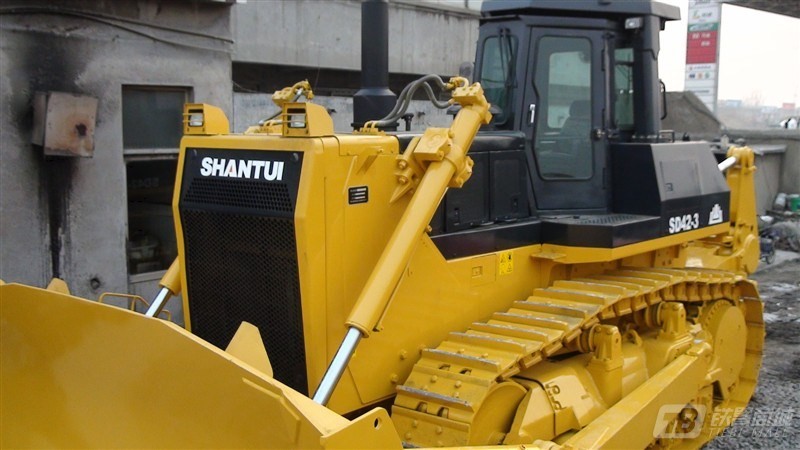

SD42-3 is one of the most powerful track-type
bulldozers in China. Mainly used in large mine projects, the SD42-3 can be
adapted to tough working conditions.
Main
features:
● Single-hand,
electronic-control gear shift and steering systems;
● Working device controlled by PPC
proportional pilot valve;
● K suspension drifting travel system;
● Global intelligent service system;
● Central pressure measurement, central
lubrication, and automatic track tensioning;
|
ITEM |
UNIT |
SD42-3 |
|
L×W×H (Ripper not included) |
mm |
9630×4315×3955 (Ripper included) |
|
Operating weight (Ripper not included) |
t |
53 (Ripper included) |
|
Engine |
- |
Cummins KTA19-C525 |
|
Rated power |
kW/rpm |
310/2000 |
|
Gradeability |
° |
30 |
|
Blade type |
- |
Semi-U blade |
|
Blade width |
mm |
4315×1875 |
|
Dozing capacity |
m3 |
16 |
|
Ma× drop below ground of blade |
mm |
700 |
|
Lift height of blade |
mm |
1545 |
|
Ripper type |
- |
Single ripper |
|
Ripping depth of ripper |
mm |
1400 |
|
Lifting height of ripper |
mm |
1130 |
|
Number of carriers (each side) |
- |
2 |
|
Number of track rollers (each side) |
- |
7 |
|
Number of track shoes (each side) |
- |
41 |
|
Width of track shoe |
mm |
610 |
|
Track gauge |
mm |
2260 |
|
Ground length and ground pressure |
mm/MPa |
3560-0.123 |
|
Pitch |
mm |
260.35 |
|
Forward speed |
km/h |
0–3.7 |
|
0–6.8 |
||
|
0–12.2 |
||
|
Reverse speed |
|
0–4.4 |
|
0–8.2 |
||
|
0–14.8 |
