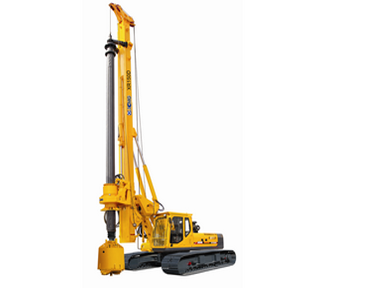

Name:XCMG XR260D
Number:122316534217
Category:LIFTING MACHINERY
Date Added:2014/12/23 16:53:42
Views:3129

Products

Adopting specifically made hydraulic track(H-shped frame) and long diameter slewing bearing to insure high stability and transporting conveninence;Original packaging imported CUMMINS turbo charging engine provides strong drive power and meets Euro III emission standards; The hydraulic system uses limit power control and flow control to be high energy efficient; Single rope main winch to be an effective solution to the problem of wire rope wear, effectively improve the service life of wire rope; Detection device is installed on the main winch and the single layer rope makes depth detection more accurate; Machine designed to meet the requirements of CE directives, security and safer construction are guaranteed; A variety of configurations (such as: leg cylinders, casing drivers, etc.) are designed according to user requirements to insure high scalability; New structure of power head, the use of multi-stage shock absorption technology, the double seal structure improve reliability, removable drive plate ensures easy maintenance; Standard centralized lubrication systems makes maintenance more convenient.

NO.	Name		Unit	Parameters
1	Max. drilling diameter		mm	Æ2200
2	Max. drilling depth		m	67 (5-section of frication type) (standard)
3	Safe operation range(from rotarying centre)		mm	52(4-section of mechanical interlock) (optional)
4	Dimension in working condition(L×W×H)		mm	4015～4800
5	Dimension in transportation condition(L×W×H)		mm	10465×4400×22220
6	Overall drilling weight(drilling tools not included)		t	16525×3250×3575
7	Engine	Engine model		74
		Engine rated power/rotary speed	kW	CUMMINS QSL-325
		Max. Torque of engine	N.m	242 /(2100r/min)
8	Hydrulic system	Max. pressure	Mpa	35
8	Hydrulic system	Max. pressure of vice pump	Mpa	28
9	Rotary drive	Max.output torque	kN.m	260
9	Rotary drive	Rotary speedRotary speed	rpm	7～22
10	Pull-Down clinder	Max. pull-down piston push	kN	200
		Max. pull-down piston pull	kN	200
		Max. pull-down piston stroke	mm	5000
11	Main winch	Max. pulling force	kN	260
		Max. wire speed	m/min	70
		Wire diameter	mm	32
12	Auxiliary winch	Max. pulling force	kN	80
		Max. wire speed	m/min	60
		Wire diameter	mm	20
13	Mast	Left/ right Side	°	4/4
13	Mast	Forwards	°	5/15
14	Slewing bearing	Slewing bearing angle	°	360
15	Runing	Max. complete device running speed	km/h	1.5
15	Runing	Max. complete device grade ability	%	35
16	Track	Track width	mm	800
		Outside width(min-max)	mm	3250～4400
		Distance between two wheels longitudinally	mm	4750
		Average grouning specific pressure	KPa	100
