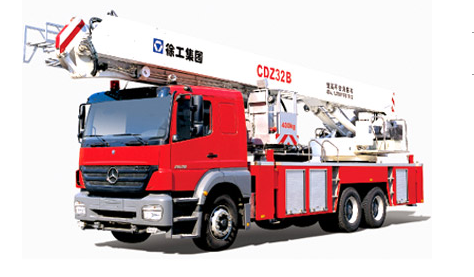

- Name:XCMG CDZ32B
- Number:12231754015
- Category:HEAVY-DUTY TRUCK &SPECIAL-PUMP
- Date Added:2016/6/12 21:11:22
- Views:1168
Products
| Main technical data in travel configuration | ||||
|---|---|---|---|---|
| Category | Item | Unit | Parameter | |
| Dimension | Overall length | mm | 11380 | |
| Overall height | mm | 3900 | ||
| Overall width | mm | 2500 | ||
| Wheel base | Axles 1 and 2 | mm | 4500 | |
| Axles 2 and 3 | mm | 1350 | ||
| Tread | Front axle | mm | 2053 | |
| Rear axle | mm | 1802 | ||
| Weight | Weight with full load | kg | 23950 | |
| Axle load | Front axle | kg | 6450 | |
| Dual rear axles | kg | 17500 | ||
|
Travel performance |
Max. travel speed | km/h | 85 | |
| Min. turning diameter | m | ≤24 | ||
| Approach angle | ° | 16 | ||
| Departure angle | ° | 10 | ||
| Braking distance(at 30km/h) | m | ≤10 | ||
| Min. ground clearance | mm | 204 | ||
| Max. gradeability | % | ≥25 | ||
| Main technical data for operation | ||||
| Main performance | Rated working height | m | 32 | |
| Rated load | kg | 400 | ||
| Max. working radius (Full extending/semi-extending) | m | 19/15 | ||
| Outrigger span(longitudinal×lateral) | m | 6650×5800 | ||
| Elevating range | ° | ﹣3～80 | ||
|
Working speed |
Boom deploying time | S | ≤130 | |
| Outrigger extending time | S | ≤40 | ||
| Slewing speed | r／min | 0～1.5 | ||
| Fire-fighting performance | Water monitor rated flow | L／s | 50 | |
| Water monitor rated pressure | MPa | ≤1.0 | ||
| Water monitor rated reach | m | ≥65 | ||
| Fire pump rated flow | L／s | 50 | ||
| Fire pump rated outlet pressure | MPa | 1.8 | ||
