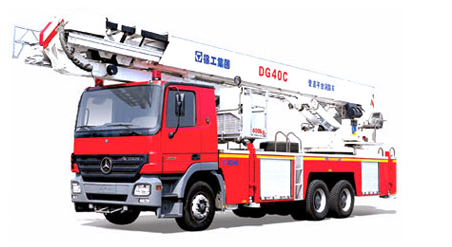

- Name:XCMG DG40C
- Number:12231784115
- Category:HEAVY-DUTY TRUCK &SPECIAL-PUMP
- Date Added:2016/6/12 21:11:39
- Views:1182
Products
Germany Benz Actros3332 chassis; 4 telescopic booms and 1 folded boom structure; with the largest load of 400kg, the working platform reserves the escape channel, and rescue through multiple channels; equipped with reverse radar and integrated lubricating system, the machine can work on one side; electro-hydraulic proportional control technology, high efficiency in vehicle rescuing and easy operation; the machine has 22 protecting devices.
|
Main technical data in travel configuration |
||||
|
Category |
Item |
Unit |
Parameter |
|
|
Dimension |
Overall length |
mm |
12400 |
|
|
Overall height |
mm |
3960 |
||
|
Overall width |
mm |
2500 |
||
|
Wheel base |
Axles 1 and 2 |
mm |
4500 |
|
|
Axles 2 and 3 |
mm |
1350 |
||
|
Tread |
Front axle |
mm |
2035 |
|
|
Rear axle |
mm |
1804 |
||
|
Weight |
Weight with full load |
kg |
28800 |
|
|
Axle load |
Front axle |
kg |
7030 |
|
|
Dual rear axles |
kg |
21770 |
||
|
Travel performance |
Max. travel speed |
km/h |
85 |
|
|
Min. turning diameter |
m |
≤19.3 |
||
|
Approach angle |
° |
16 |
||
|
Departure angle |
° |
10 |
||
|
Braking distance(at 30km/h) |
m |
≤9.5 |
||
|
Min. ground clearance |
mm |
290 |
||
|
Max. gradeability |
% |
≥28 |
||
|
Main technical data for operation |
||||
|
Main performance |
Rated working height |
m |
40.5 |
|
|
Rated load |
kg |
400 |
||
|
Max. working radius |
m |
18 |
||
|
Outrigger span(longitudinal×lateral) |
m |
6.9×5.5 |
||
|
Elevating range |
° |
﹣3～80 |
||
|
Working speed |
Boom deploying time |
S |
≤180 |
|
|
Outrigger extending time |
S |
≤30 |
||
|
Slewing speed |
r／min |
0～2 |
||
|
Fire-fighting performance |
Water monitor rated flow |
L／s |
50 |
|
|
Water monitor rated pressure |
MPa |
≤1.0 |
||
|
Water monitor rated reach |
m |
≥65 |
||
