  • Price:￥0

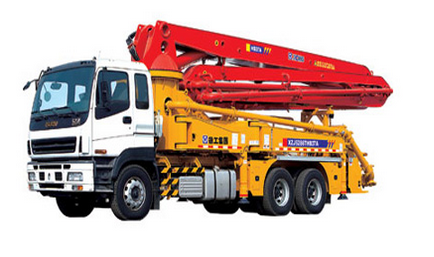

  • Name:XCMG HB37A
  • Number:122317152215
  • Category:CONCRETE MACHINERY
  • Date Added:2016/6/12 21:11:07
  • Views:1233
Products
No. Item Unit Parameter
1 Max. speed km 90
2 Min. turning diameter m 18.4
3 Brake distance m 7
4 Approach angle ° 31
5 Departure angle ° 12
6 Chassis model   CXZ51Q ( Japan )
7 Total weight kg 28150
8 1st axle load kg 6780
9 2nd, 3rd axle load kg 21220
10 Engine model   6WF1
11 Max. Engine power kW 287
12 Max. Engine torque N.m 1862
13 Max. grade-ability % 38
14 Fuel consumption limit L/100km 34
15 Outline dimensions (Length´ Width ´Height) mm 11990´2490´3900


Technical Data for Pumping Operation

No. Item Unit Parameter
1 Theoretical output m3/h 138/90
2 Max. delivery pressure MPa 8.7/13
3 Reach height m 37.4
4 Reach depth m 23.7
5 Front outrigger transverse span mm 7280
6 Rear outrigger transverse span mm 6600
7 Outrigger longitudinal span mm 6860
8 Delivery pipe diameter mm 125
9 Remote control distance m 100
10 Placing boom slewing range ° 370
