  • Name:XCMG HB52
  • Number:122317241814
  • Category:CONCRETE MACHINERY
  • Date Added:2014/12/23 17:24:18
  • Views:3299
Products

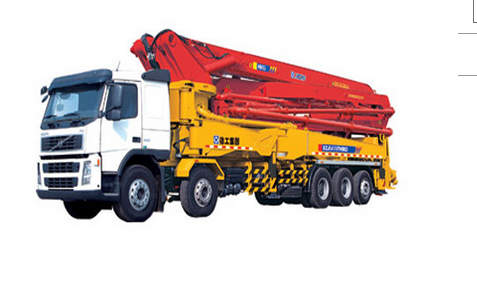

HB52 concrete pump is the medium size of XCMG machine, and widely applied in high buildings and large foundation equipments of bridge, power plant, steel plant, water treatment plant. The machine features environmental care, safety, reliability and advanced.

Travel
Category Item Unit Parameter
Chassis Model FM440
Manufacturer VOLVO
Max. speed km/h 90
Max. gradeability 38%
Min. turning diameter m 27.4
Brake distance m ≤10
Wheelbase mm 1995+5205+1370+1450
Tread (front/rear) mm 2028/1872
Approach angle/departure angle 。 18/12
Min. clearance mm 270
Tyre specification 12.00R20
Engine Model D13
Output power kw/(r/min) 324/1400~1800
Max. torque N.m/(r/min) 2200/1050~1400
Displacement l 12.8
Emission Standard Nation III GBⅢ
Others Dimension (Length×Width×Height) mm 14665×2500×3990
Total vehicle weight kg 47000
Fuel tank capacity l 410
Fuel consumption per 100km l/100km 50
Pumping operation
Pumping system Theoretical output(high pressure/low pressure) m³/h 90/138
Concrete pumping pressure(high pressure/low pressure) Mpa 13/8.7
Theoretical pumping times(high pressure/low pressure)

Times/min

18/27
Max. diameter of pumping concrete aggregate 40
Feeding height 1450
Placing boom Pumping slump range 12-23
Reach height 51.5
Reach depth 40
Slewing radius 47.5
Slewing angle 364
1st boom stretch angle 96
2nd boom stretch angle 180
3rd boom stretch angle 180
4th boom stretch angle 180
5th boom stretch angle 260
Outrigger spanOverall outrigger span   11020±50
Front outrigger transverse span   10730±50
Rear outrigger transverse span   10430±50
Others Dosing type S valve
Lubricating method Automatic lubrication
Controlling method Manual/remote control
Water tank capacity 650
Max. pressure of water pump 2
