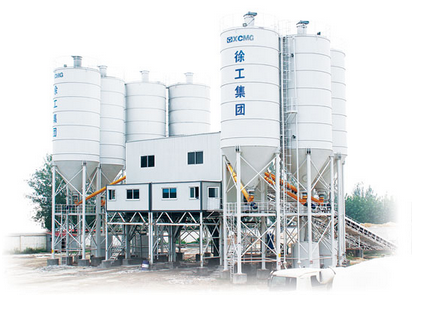

- Name:XCMG HZS120/2HZS120
- Number:122317301014
- Category:CONCRETE MACHINERY
- Date Added:2016/6/12 21:10:36
- Views:1363
Products
High efficiency, low fuel consumption, and environmental care.
• Modular function and design; quick installation and site transfer.
• Equipped with Italy SICOMA dual-horizontal axis forced type main mixing machine, featuring superior mixing capacity and high reliability.
• Measurement, control and signal transfer element all adopt products of world famous brand; independent measuring of various kinds of materials (or cumulative measurement), stable performance and accurate measurement.
• Advanced industrial computer + PLC control mode, inferior PLC executive signal sampling and output control, superior industrial computer dynamic displays the production process and management. It can achieve full automatic control and manual control, featuring simple operation, friendly interface, high reliability and flexible expanding.
• Modular function and design; quick installation and site transfer.
• Equipped with Italy SICOMA dual-horizontal axis forced type main mixing machine, featuring superior mixing capacity and high reliability.
• Measurement, control and signal transfer element all adopt products of world famous brand; independent measuring of various kinds of materials (or cumulative measurement), stable performance and accurate measurement.
• Advanced industrial computer + PLC control mode, inferior PLC executive signal sampling and output control, superior industrial computer dynamic displays the production process and management. It can achieve full automatic control and manual control, featuring simple operation, friendly interface, high reliability and flexible expanding.
• It can also be designed according to the requirements and conditions (i.e. site, output, environmental care, structural appearance)
Items
Unit
HZS120/2HZS120
Theoretical productivity
m3/h
120/240
Dump height
m
4
Model of main mixing machine
MAO3000/2000
Mixing power
kW
2X37
Nominal volume of main mixing machine
L
2000
Production cycle
s
60
Aggregate diameter
mm
≤80
Aggregate bin volume
m3
4X25
Powder bin (optional)volume
t
4×200
Batching plant capacity
L/bin
3200
Inclined belt conveyor capacity
t/h
900
Concrete spiral conveyor capacity
t/h
90
Coal ash spiral conveyor capacity
t/h
60
Standard installed capacity
kW
210/420
Weighing range & accuracy of sand/stone
kg
(0～3600)±2%
Weighing range & accuracy of cement
kg
(0～1000)±1%
Weighing range & accuracy of coal ash
kg
(0～500)±1%
Weighing range & accuracy of water
kg
(0～500)±1%
Weighing range & accuracy of additives
kg
(0～50)±1%
