LIFTING MACHINERY、EARTH MOVING MACHINERY
Products

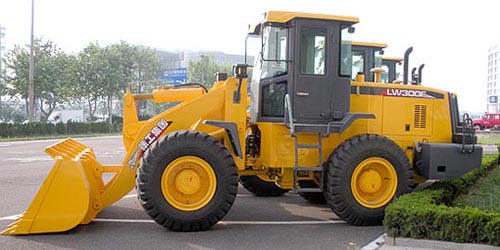

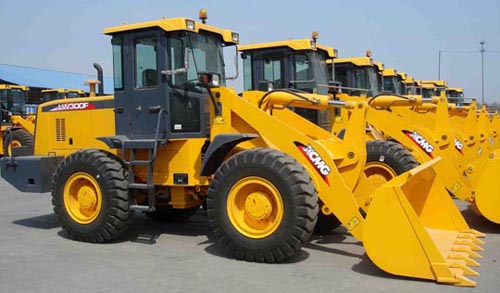

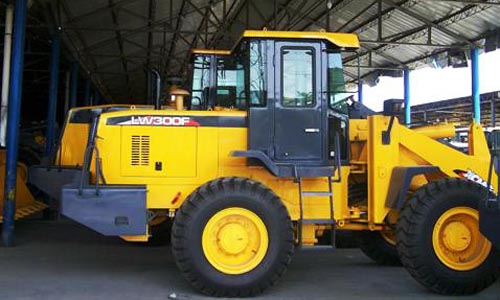

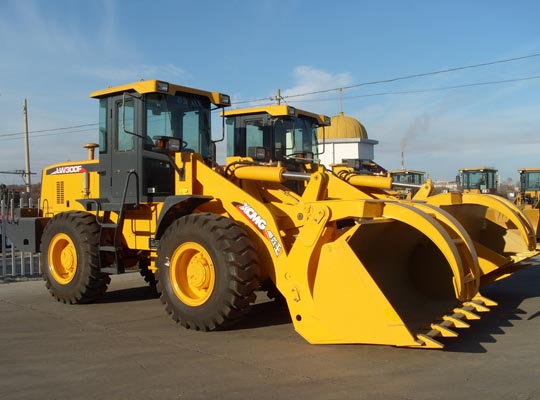

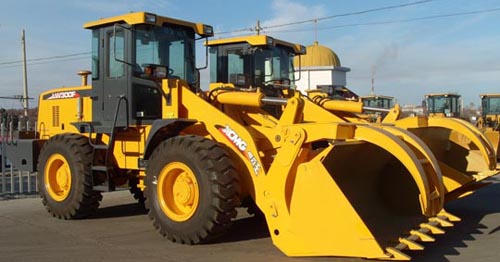

- Name:LW300F
- Number:7322342911
- Category:EARTH MOVING MACHINERY
- Date Added:2013/7/18 16:40:20
- Views:1909
Products
| Main parameter | LW300F | |
| Rated load | kg | 2600 |
| Operating Weight (standard) | kg | 10200 |
| Rated Bucket Capacity | m3 | 3 |
| Maximum breakout force | KN | 120 |
| Maximum traction force | KN | 90 |
| Total hydraulic cycle | s | 10.3 |
| Maximum dump height | mm | 2948 |
| Maximum dump distance | mm | 2036 |
| Forward speed range | km/h | 0～35 |
| Reverse speed range | km/h | 0～16 |
| Transport dimensions (L × W × H) | mm | 7127×2470×3028；7226×2470×3028 |
| Maximum steering angle | ° | 35 |
| Minimum grade ability | ° | 28 |
| Minimum turning radius | mm | 6400 |
| Tire Size | / | 17.5-25-12PR |
| Engine parameter | ||
| Model | / | Deutz WP6G125E22 |
| Type | / | 6-cylinder, in-line, direct injection and turbocharged |
| Power | kw | 92 |
| Maximum torque | N·m | 600 |
| Cylinder diameter | mm | 105 |
| Stroke | mm | 120 |
| Output volume | L | 6.234 |
| Fuel consumption | g/kw·h | 220 |
| Hydraulic system | ||
| Work system pressure | Mpa | 15 |
| Braking System | ||
| Running braking system type | / | Single pipeline gas-oil 4-wheel clipper disc braking |
| Parking / emergency brake system type | / | Clipper disc braking |
| Fuel Tank Capacity | ||
| Fuel tank | L | 155 |
| Hydraulic oil tank | L | 180 |
