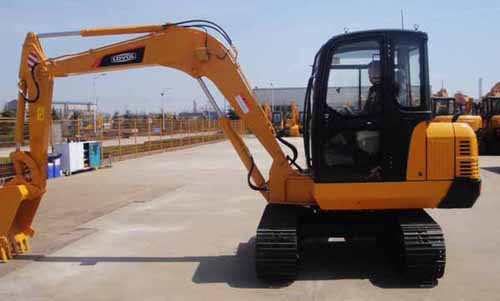

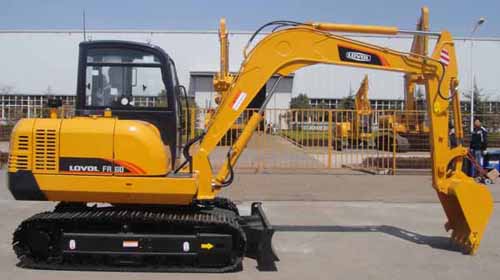

- Name:FOTON FR60
- Number:72211324715
- Category:EARTH MOVING MACHINERY
- Date Added:2013/7/22 22:32:13
- Views:2260
Products
| Main Parameters | |
| Operation Weight (Standard Configuration) (KN) | 5730 |
|---|---|
| Standard Bucket Capacity | 0.18 |
| Transport Dimensionsmm | 6010*1880*2650 |
| Bucket Digging Force (KN) | 42 |
| Bucket Rob Digging Force (KN) | 31 |
| Maximum Traction (KN) | 52.8 |
| Device | |
| High-low Speed (Km/h) | 4.5/3.0 |
| Climbing Performance(°) | 30 |
| Total Length of the Crawler | 2550 |
| Tail Turning Radius (mm) | 1600 |
| Width of the Crawler | 400 |
| Ground Pressure (Kpa) | 32 |
| Turning Mechanism | |
| Turning Speed (rpm) | 10.2 |
| Engine | |
| Model | 4TNV94L-SFN Yanmar 4TNV94L-SFN |
| Form | Four Cylinders, Direct Injection, Naturally Aspirated, Water-cooling |
| Rated Power/Rotate Speed (KW/rpm) | 39/2200 |
| Rated Torque/Rotate Speed (N.m/rpm) | 218/1000 |
| Cylinder Diameter*Stroke (mm) | 94*110 |
| Output Value (L) | 3.054 |
| Fuel Consumption (g/KW.h) | 235 |
| Hydraulic System | |
| Fuel Tank Capacity (L) | 120 |
| Main Pump Pressure (Mpa) | 24.5 |
| Main Pump Flow | 135 |
| Operating Scope | |
| Maximum Digging Height (mm) | 5330 |
| Maximum Dumping Height (mm) | 3640 |
| Maximum Digging Depth (mm) | 3935 |
| Maximum Digging Radius (mm) | 6110 |
