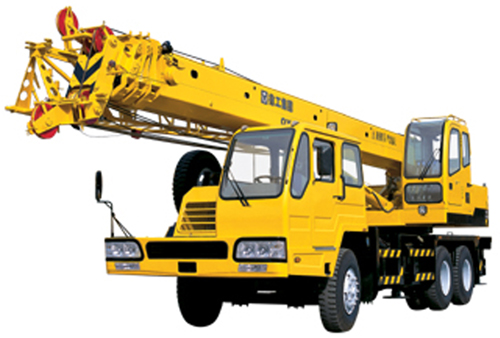

- Name:QY16D
- Number:861605111
- Category:LIFTING MACHINERY
- Date Added:2013/8/6 16:00:51
- Views:2175
Products
Classificatory
Item
Unit
Parameter
Engine
Model
D6114ZLQ5B
Outline dimension
Overall length
mm
11990
Overall width
mm
≤2500
Overall height
mm
3350
Wheel base
Axle 1, Axle 2
mm
4025
Axle 2, Axle 3
mm
1350
Mass
Total mass in travel state
kg
24000
Axle load
Axle 1
kg
6400
Axle 2
kg
17600
Travel performance
Travel speed
Max. travel speed
km/h
≥70
Min. stable travel speed
km/h
3～4
Turning diameter
Min. turning diameter
m
≤20
Min. turning diameter at boom tip
m
≤23
Min. ground clearance
mm
270
Approach angle
(°)
21
Departure angle
(°)
10
Braking distance (at 30km/h with full load)
m
9.5
Max. grade-ability
％
24
Fuel consumption for 100km
L
35
Classificatory
Item
Unit
Parameter
Lifting performance
Max. total rated lifting capacity
t
16
Min. rated working radius
m
3
Turning radius at turntable tail
m
≤3.12
Max. load moment
Base boom
kN.m
686
Fully extended boom
kN.m
388
Fully extended boom + Jib
kN.m
254
Outrigger span
Longitudinal
m
4.6
Lateral
m
5.4
Lifting height
Base boom
m
≥9.9
Fully extended boom
m
≥30.7
Fully extended boom + Jib
m
≥38.5
Working speed
Boom raising time
s
≤60
Boom full extension time
s
≤95
Max. swing speed
r/min
≥2.5
Hoist speed
(single line)
Main winch
Full load
m/min
≥54
No load
m/min
≥100
Aux. winch
Full load
m/min
≥54
No load
m/min
≥100
Noise limit
Crane exterior noise
dB (A)
≤118
At seated position
dB (A)
≤90
Main Technical Data for Lifting Operation
